高压塔架钢镀锌输电杆用132kv电管杆

MOQ:	10 tonnes
Price:	US$1,150/tonnes 10-99 tonnes

Details Information

Product Description

Detail Information

型号:

Support Customization

种类:

电力钢管塔

原产地:

Hebei, China

品牌:

Yinghao

高:

支持自定义

表面处理:

热浸镀锌, 热浸镀锌

吊装方法:

手动

材料:

Q420B/Q355B/Q235B, Q420B/Q355B/Q235B

产品名称:

电力钢管塔

应用程序:

电力

使用寿命:

20-50岁

Product Description

The power tower is a steel structure frame that maintains a certain safe distance between the supporting wires and between the ground wire and the ground building in the transmission line. According to its shape, it is generally divided into five types: wine glass type power tower, cat head type power tower, upper font type power tower, dry font type and barrel type. According to its use, it is divided: tightening power tower, linear power tower, corner power tower, transposition power tower (replacement of conductor phase position tower), terminal power tower and crossing power tower, etc.

Height	Section No.	Pole Shape	Diameter(mm)	Thickness(mm)	Material Type	Surface Treatment
25FT	1	octagonal	120/152	2.75	ASTM A572 GR50/Q345	hot dip galvanized
30FT	1	octagonal	127/226	3	ASTM A572 GR50/Q345	hot dip galvanized
35FT	1	octagonal	127/248	3	ASTM A572 GR50/Q345	hot dip galvanized
40FT	2	octagonal	127/317	4	ASTM A572 GR50/Q345	hot dip galvanized
45FT	2	octagonal	127/328	4	ASTM A572 GR50/Q345	hot dip galvanized
50FT	2	dodecagonal/12sides	127/340	4	ASTM A572 GR50/Q345	hot dip galvanized
55FT	2	dodecagonal/12sides	162/468	4	ASTM A572 GR50/Q345	hot dip galvanized
60FT	2	dodecagonal/12sides	153/468	4	ASTM A572 GR50/Q345	hot dip galvanized
65FT	2	dodecagonal/12sides	127/510	4	ASTM A572 GR50/Q345	hot dip galvanized
70FT	2	dodecagonal/12sides	200/468	5	ASTM A572 GR50/Q345	hot dip galvanized
75FT	2	dodecagonal/12sides	200/478	5	ASTM A572 GR50/Q345	hot dip galvanized
80FT	3	hexadecagonal/16sides	190/540	5	ASTM A572 GR50/Q345	hot dip galvanized
85FT	3	hexadecagonal/16sides	223/582	5	ASTM A572 GR50/Q345	hot dip galvanized
90FT	3	hexadecagonal/16sides	223/582	5	ASTM A572 GR50/Q345	hot dip galvanized
95FT	3	dodecagonal/12sides	260/650	5	ASTM A572 GR50/Q345	hot dip galvanized

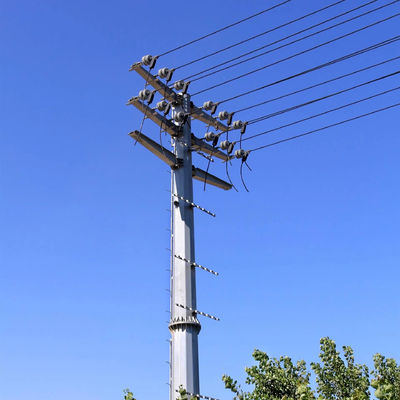

STEEL ELECTRIC TRANSMISSION POLE

Steel electric transmission poles are commonly used in electrical power distribution systems, particularly in areas where
underground cable installation is not feasible or cost-effective. These poles are strategically placed along transmission lines to
provide the necessary support for the conductors that carry electricity from power plants to substations and ultimately to homes,
businesses, and industries.
The design of steel electric transmission poles can vary based on factors such as the voltage of the power lines, the terrain of
the installation site, and local building codes and regulations.

GENERAL SPECIFICATIONS

* Height : 9 - 30M
* Pole Sections : 1 - 3 * Length of per Section: within 11.8m once forming without slip joint
* Material : ASTM Standard Steel Grade (Q235B, Q345B, Q355B GR65 etc)
* Pole Thickness : 2.75MM - 16MM
* Maximum Load : Up to 1800 kg
* Connection Method : Direct Embedment
* Embedment Depth : Up to 2000MM

STRONG CORROSION RESISTANCE

The Corrosion Resistance Of steel Pipes, The Service lifeCan Be Extended, And it is Suitabie For Various Harsh Environmental Conditions.

SMALL FOOTPRINT

About 1/3 Of A Self-Standing Tower, which Reduces landAcquisition Costs And construction Difficulty, lt ls Especially Suitable For Areas With limited land Resources Such AsCities And Mountainous Areas

SHORT CONSTRUCTION PERIOD

The construction speed ls Fast And The Power QutageTime ls Short, which Can Reduce The Impact Of ElectricityConsumption On Surrounding Residents And Businesses

EXCELLENT PERFORMANCE

Steel Pipe Poles Have Higher Safety And Stability, LowerMaintenance Costs, And Better Aesthetics In Power Systems

Specification

item	value
Model Number	Support customization
Type	Electric power steel pipe tower
Brand Name	Yinghao
Place of Origin	China
	Hebei
Height	Support customization
Surface Treatment	hot dip galvanizing
Lifting method	Manual
Material	Q420B/Q355B/Q235B
Material	Q420B/Q355B/Q235B
Product name	Electric power steel pipe tower
Application	Electricity
Surface treatment	Hot Dip Galvanized
Service life	20-50 Years
