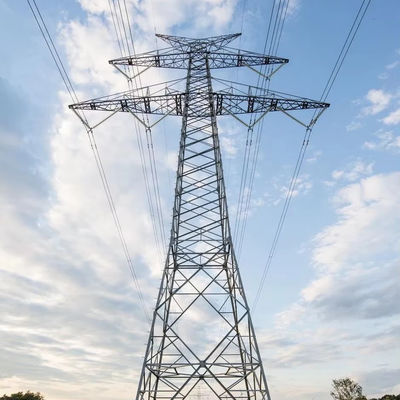

10-500kv双回路电线塔输电格子塔不同类型的电力塔
  • name
  • name
  • name
  • name
  • name
  • name

10-500kv双回路电线塔输电格子塔不同类型的电力塔

MOQ: 10 tonnes
Price: US$1,100/tonnes 10-99 tonnes
Details Information
Product Description
Detail Information
型号:
Support Customization
种类:
电源塔
原产地:
Hebei, China
品牌:
Yinghao
高:
支持自定义
表面处理:
热浸镀锌, 热浸镀锌
吊装方法:
手动
材料:
Q420B/Q355B/Q235B, Q420B/Q355B/Q235B
产品名称:
电源塔
应用程序:
电力
颜色:
定制颜色
Product Description
Product Description
10-500kv双回路电线塔输电格子塔不同类型的电力塔 0
The power tower is a steel structure frame that maintains a certain safe distance between the supporting wires and the ground buildings in the transmission line.According to its shape is generally divided into: glass type power tower, cat head type power tower, on the type of power tower, dry type and barrel type five According to the purpose, there are: tension-resistant power tower, linear power tower, corner power tower, transposition power tower (replacement of conductor phase position tower), terminal power tower and crossing power towe
10-500kv双回路电线塔输电格子塔不同类型的电力塔 1


Features:

1. Various towers are space frame structure. Bars are composed of single equilateral angle steel or combination of angle steel.
2. The materials are generally Q235, Q345 and Q420. The connection between the bars is crude bolt.
3. Hot dip galvanized anti-corrosion. Very convenient for transportation and construction erection.
4. We set foot nails on one of main legs to facilitate the construction workers to climb onto the tower for operation.
Welding
Standard
Standard Title
Pole shafts&multi-sided tubular
AWS D1.1/D1.1M:2010
Structural Welding Code-Steel
Cross arms&all accessories
Welding wire
AWS D1.1/D1.1M:2010
Structural Welding Code-Steel
Steel
Yield Strength(MPa)
standard
Standard Title
Metallic element
Content
main ingredient Q345
345 for Thickness<=16
GB/T 1591-2008
High strength low alloy structural steels
C
≤0.20
(ASTM A572/A572M-15 ,EN10025 S355N)
Mn
≤1.70
Si
≤0.50
Accessories Q235
235
GB/T 700-2006
Carbon structural steels
(ASTM A283 Gr.B ,EN10025 S235JR)
P
≤0.035
S
≤0.035

Transmission line poles and towers

Transmission line poles and towers are tower structures used to support and raise overhead conductors, lightning rods and otheraccessories, so that conductors and conductors, poles and towers, conductors and lightning rods, and conductors on the ground oracross objects to maintain a specified safe distance from the towering structure.According to the purposes are: tension tower,straight tower, corner tower, transposition tower (replacement of wire phase position tower), terminal tower and spanning tower.
10-500kv双回路电线塔输电格子塔不同类型的电力塔 2

Features:
1. Various towers are space frame structure. Bars are composed of single equilateral angle steel or combination of angle steel.
2. The materials are generally Q235, Q345 and Q420. The connection between the bars is crude bolt.
3. Hot dip galvanized anti-corrosion. Very convenient for transportation and construction erection.
4. We set foot nails on one of main legs to facilitate the construction workers to climb onto the tower for operation.
10-500kv双回路电线塔输电格子塔不同类型的电力塔 3
STEEL RAW MATERIALS
our company adopts raw materials from large scale steemills which certified by the state, and strictly controls thequality of raw materials.
STABLE STRUCTURE
the Angle steel of the transmission line can stably carrythe weight and wind pressure of the transmission line toensure the safe operation of the transmission line.
HIGH STRENGTH
The high strength and stifiness of the tower Angle steelmake it able to withstand large loads and ensure the sta-bility and reliability of the transmission line.
EXCELLENT PERFORMANCE
The Angle steel of the tower has good wind resistance,earthquake resistance and corrosion resistance, and conmaintain the stability and safety of the transmission lineunder bod weather conditions.
Specification
item
value
Model Number
Support customization
Type
Power tower
Brand Name
Yinghao
Place of Origin
China
Hebei
Height
Support customization
Surface Treatment
hot dip galvanizing
Lifting method
Manual
Material
Q420B/Q355B/Q235B
Material
Q420B/Q355B/Q235B
Product name
Power tower
Application
Electricity
Surface treatment
Hot Dip Galvanized
Color
Customized Color
Company Profile
10-500kv双回路电线塔输电格子塔不同类型的电力塔 4
10-500kv双回路电线塔输电格子塔不同类型的电力塔 5
10-500kv双回路电线塔输电格子塔不同类型的电力塔 6
FAQ
1. who are we?
We are based in Hebei, China, start from 2013,sell to Africa(20.00%),North America(10.00%),Eastern Europe(10.00%),Central America(10.00%),Northern Europe(10.00%),South Asia(10.00%),Domestic Market(10.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Eastern Asia(5.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lightning tower,Electric power steel pipe tower,Electric angle steel tower,Wind power early anemometer tower,radio and television tower

4. why should you buy from us not from other suppliers?
Our company has advanced production equipment and excellent company team. The company's integrity and practicality, service follow-up, and product quality assurance have been praised and recognized by the industry.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
